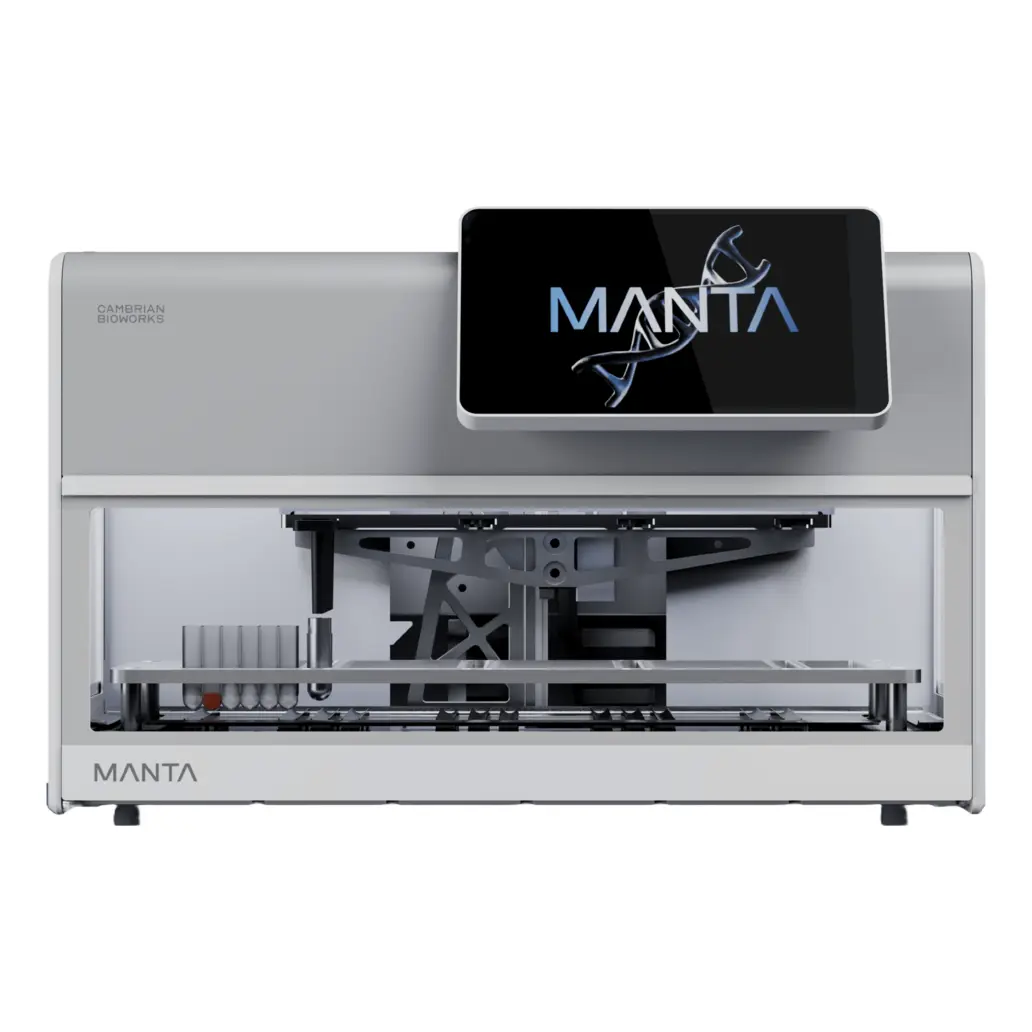

Manta DNA and RNA Extraction System
Compact, flexible automation for DNA and RNA extraction. Manta processes any number from 1 to 32 samples per run using pre-filled, single-sample cartridges, so laboratories can automate without waiting for a full batch.
- Process 1–32 samples per run
- Magnetic bead-based purification
- Approximately 30-minute processing time
- Starting sample volumes from 100 µL to 4 mL
Page navigation:
Flexible extraction for changing sample loads
Manta automates magnetic bead-based DNA and RNA purification with single-sample, pre-filled cartridges. Run one sample or any number up to 32, reducing the need to wait for a full batch.
Sample-specific kits support whole blood, tissue, plasma, FFPE tissue, saliva, buccal swabs, viral samples, cell cultures and other biospecimens. A 7-inch touchscreen, remote monitoring, UVC lamp and optional elution into barcoded storage tubes support straightforward and traceable workflows.
| Feature | Specification |
|---|---|
| Processing capacity | Any number from 1–32 samples |
| Extraction method | Magnetic bead-based technology |
| Starting sample volume | 100 µL–4 mL |
| Elution volume | 50–200 µL |
| Processing time | Approximately 30 minutes; sample dependent |
| Consumable format | Pre-filled, single-sample cartridges |
| Supported material | DNA and RNA |
| Display | 7-inch touchscreen |
| Remote monitoring | Yes |
| Decontamination | UVC lamp |
| Heating | Up to 85°C |
| Dimensions | 43.5 × 28.2 × 26.7 cm, L × W × H |
| Weight | 18 kg |
| Operating conditions | 15–40°C, indoor use |
Downloads
Find additional technical information on the Cambrian Bioworks Manta product page.
